800 Ton Niagara Straight Side Eccentric Gear Press

Dev — Thu, 07 Mar 2013 19:09:08 +0000

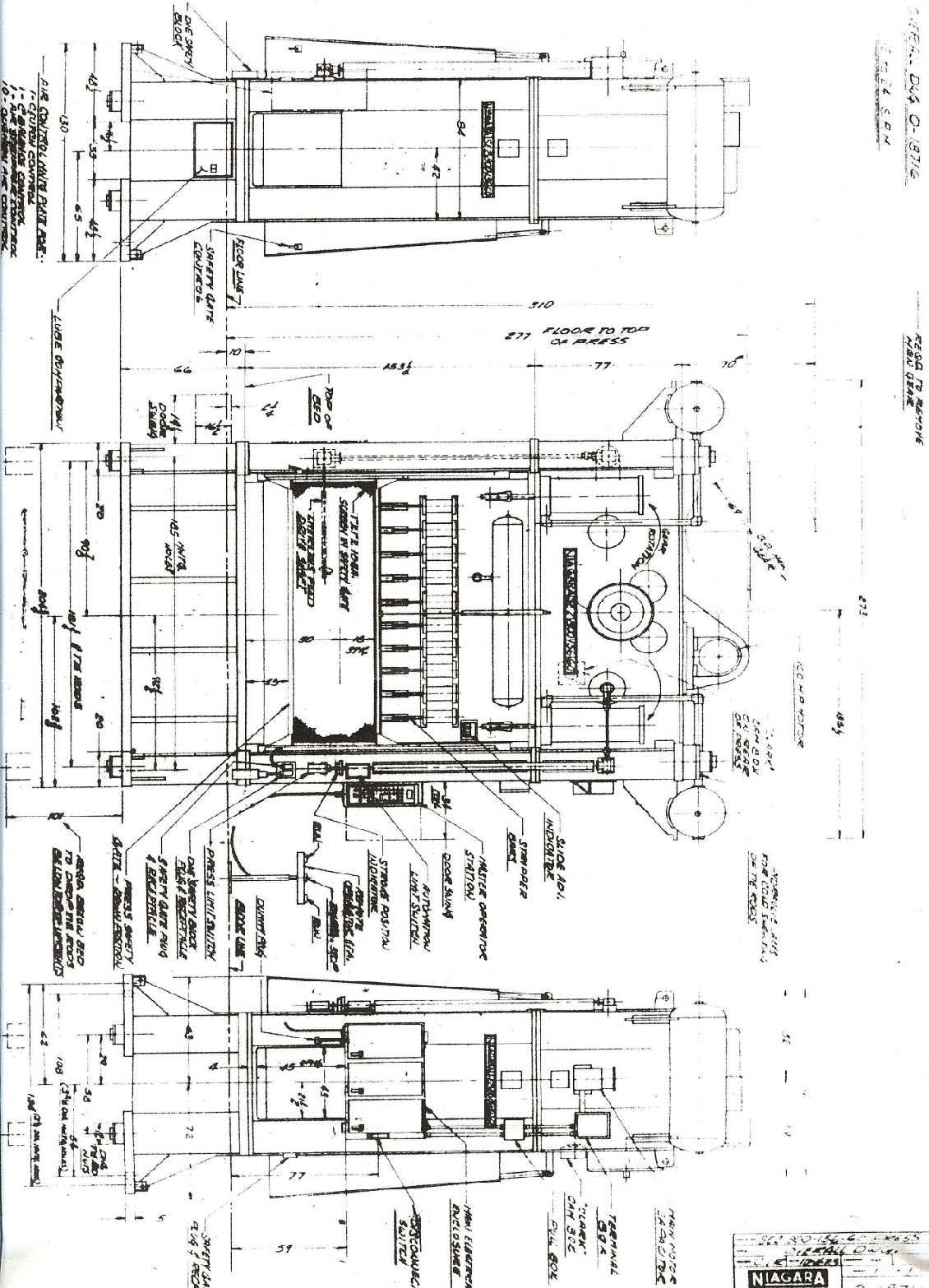

800 Ton Niagara Press – Straight Side Eccentric Gear Press Drawing

" data-medium-file="http://i1.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-4.jpg?fit=216%2C300" data-large-file="http://i1.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-4.jpg?fit=584%2C810" /> 800 Ton Niagara Press – Straight Side Eccentric Gear Press

" data-medium-file="http://i1.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-1.jpg?fit=231%2C300" data-large-file="http://i1.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-1.jpg?fit=584%2C756" /> 800 Ton Niagara Press – Straight Side Eccentric Gear Press

" data-medium-file="http://i1.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-2.jpg?fit=231%2C300" data-large-file="http://i1.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-2.jpg?fit=584%2C756" /> 800 Ton Niagara Press – Straight Side Eccentric Gear Press

" data-medium-file="http://i2.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-3.jpg?fit=300%2C235" data-large-file="http://i2.wp.com/affordable-machinery.com/wp-content/uploads/2012/06/Niagara-Straight-Side-Eccentric-Gear-Press-3.jpg?fit=584%2C458" />

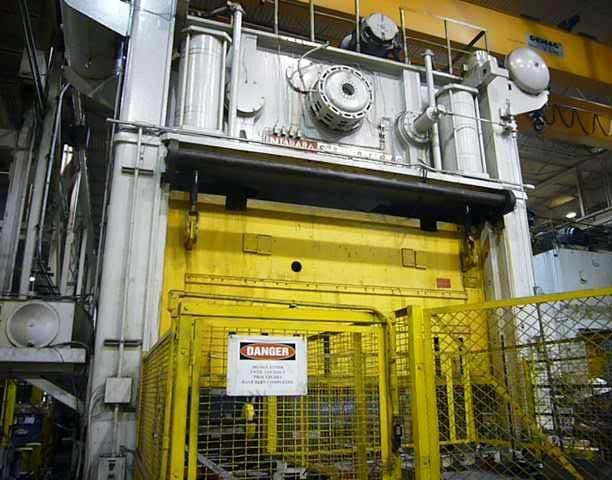

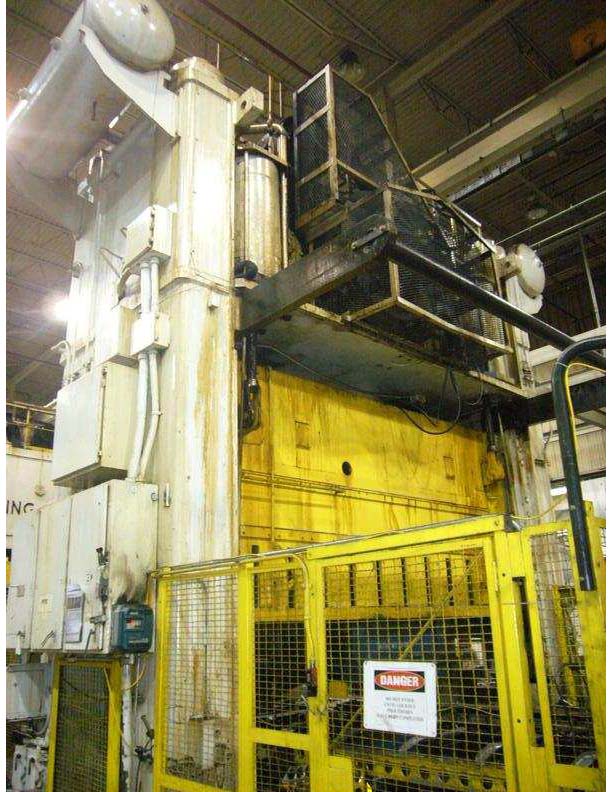

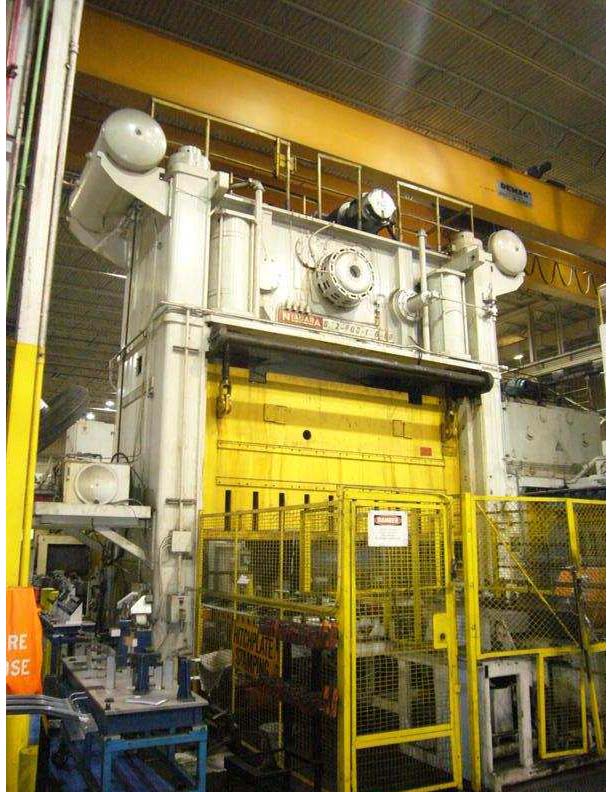

Niagara Straight Side Eccentric Gear Press

Model S2-800-156-60

Year 1973

Capacity 800 Ton

Bed Area 156″ x 60″

Slide Area 156″ x 60″

Stroke 18″

Slide Adjustment 18″

Shut Height 70″ to bed

Speed 12 to 25 SPM

Window Size 42″ wide

Equipped with; Link Control, Wayne Trails Servo Transfer System
