400 Ton Lift Systems 44A Hydraulic Gantry For Sale

Just In….

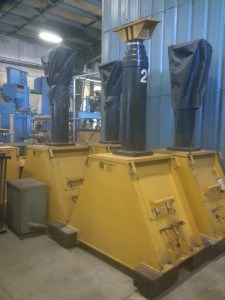

Lift Systems 400 Ton Gantry Set

  • Factory Re-certified 2014
  • Lifts 27′ (this is higher lift than older 44A models)
  • Model 44A
  • Year new: 2010
  • Hours: 115 hours & 120 hours
  • Capacity 400 Tons
  • Towers: 4
  • Two with hydraulic propel cylinders, Two with hydraulic drive motors

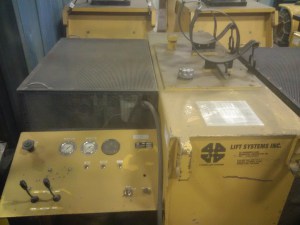

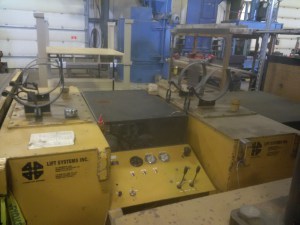

  • 2 Propane fuel power units with Kubota engines, 200 gallon capacity
  • 4 Lift links rated at 100 Tons Each
  • 10  Single line 50′ hydraulic hose
  • 1 Gang box for ancillary items
  • Runway: 100′ of 15 1/2″ extra heavy duty track (Four 20′ sections & Two 10′ sections)
  • Beams: (2) W14 @ 233lbs/ft x 30′ Long; (2) W14 @ 233lbs/ft x 25′ Long

I’m a Rigger – Keep me upto date on available equipment!I’m a Manufacture – Click Here For Updates on Machines & Equipment

lift systems 400 ton for sale for sale 400 ton gantry used hydraulic gantry for sale lift systems 44a for sale

200 Ton Riggers Manufacturing Gantry

200 Ton Riggers Manufacturing Gantry

  • Model 200 EZ Lifter
  • Year 1987
  • Capacity 200 Tons
  • Retracted Height 8′ 6 1/2″
  • Extended Height 20′
  • Unit is self propelled
  • Weight of each leg 11,000 lbs
  • Reservoir Capacity 170 gallons
  • Operating Voltage 440 volts 3 Phase 30 AMPS
  • Cylinders 2 Stage Telescopic
  • Runway and Lifting Beams Available at additional cost

I’m a Rigger – Keep me upto date on available equipment!
I’m a Manufacture – Click Here For Updates on Machines & Equipment

riggers mfg 200 ton gantry pic 3 riggers mfg 200 ton gantry pic 4 riggers mfg 200 ton gantry pic 5

Gantry Runway & Lifting Beams



Runway:

  • One Section 40′
  • One Section 42′
  • One Section 50′
  • Beams are 36″ tall with 1″ plate welded on top
Lifting Beams:
  • One Lifting Beam 34′ long x 15 1/2″ wide x 15″ tall
  • Two Lifting Beams 13′ 6″ x 15 1/2″ x 15 1/2″ boxed in
  • Two Lifting Beams 19′ 1 1/2″ Long x  15 1/2″ wide x 15″ tall
  • Two 40′ lifting beams boxed in 22 1/2″ wide x 14″ high

I’m a Rigger – Keep me upto date on available equipment!
I’m a Manufacture – Click Here For Updates on Machines & Equipment

gantry lifting beams and runway for sale gantry lifting beams and runway for sale gantry lifting beams and runway for sale gantry lifting beams and runway for sale

400 Ton Lift Systems Hydraulic Gantry with Runway & Lifting Beams

400 Ton Lift Systems Hydraulic Gantry with Runway & Lifting Beams

  • Year 2003
  • Four Jacks Model 22A
  • Base Dimensions of Jacks 67.5″ length x 48″ wide – Weight each 5,250 lbs
  • Retracted Height 9′ 10 15/16″
  • Lift Height 27′ 4 15/16″
  • Self Propelled Cylinders
  • Two Power Units
  • Meter Reads 228 hours on 1st unit and 218 hours on 2nd unit
  • Propane Powered
  • 200 Gallons each
  • Weight each 3,100 lbs
  • Equipped with: 80′ of runway ( 40′ each side ) – Four Lifting Links – Two Lifting Beams 35′ Long x 36″ Tall x 16″ Flange – Hoses
  • Note: The beams and runway pictured in assembling the press are not the one’s that come with the machine – they are in separate photos

I’m a Rigger – Keep me upto date on available equipment!
I’m a Manufacture – Click Here For Updates on Machines & Equipment

400TonGantry-1 400TonGantryLiftBeam-1 400TonGantryRings 400TonGantryRunway-1 20130926_075322 20130926_075420 20130926_101047 20130926_101523

300 Ton J&R Lift-N-Lock Hydraulic Gantry System For Sale

  • Model 1100 (Two towers) Locking System Gantry
  • Meter Reads 176 Hours
  • Lift 36′
  • Ford 4 cylinder liquid cooled engine in power unit.
  • Hydraulic gantries have become standard equipment in the lifting business today because of their cost effectiveness and project versatility. J&R Engineering LIFT-N-LOCK® Hydraulic BOOM Gantries, with their increased height capabilities and ultimate safety features, require considerably less of an investment than mobile or overhead cranes, and can perform many of the same tasks. Gantries can also work in confined spaces or low overhead areas while remaining mobile and easily transportable.
    All J & R Engineering Gantries feature our exclusive LIFT-N-LOCK® cam locking technology, which provides true continual load protection throughout the duration of the lift. In the unlikely event a lift cylinder would lose pressure or otherwise fail, our system will immediately engage to hold the load in place. Select models include our innovative OCTAGON high strength boom design. This has quickly become a popular option. Other Standard features on LIFT-N-LOCK® Gantries include:



    Double Acting Cylinders
    Oscillating/Rotating header plates
    Steel Hydraulic lines
    Integral Self Propel w/ customized wheels
    Integral Lock Valves
    Pressure compensated Controls
  • I’m a Rigger – Keep me upto date on available equipment!
    I’m a Manufacture – Click Here For Updates on Machines & Equipment

    JR Lift N Lock 1
    JR Lift N Lock 1 JR Lift N Lock 2 JR Lift N Lock 3 JR Lift N Lock 4 JR Lift N Lock 5 JR Lift N Lock 7 JR Lift N Lock 8 JR Lift N Lock 9 JR Lift N Lock 10
  • JR Lift N Lock 11 JR Lift N Lock 12
  • JR Lift N Lock 13
