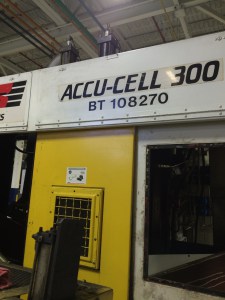

SMS AC-300 Dual-Spindle Lathe For Sale
- Model: Accu-Cell AC-300
- Control: Fanuc 160i-T
- Swing: 16.00″
- Maximum Turning Diameter: 16.00″
- Maximum Turning Length: 14.00″
- Spindle Speed: 0 – 3600 RPM Infinitely Variable
- Chuck Type: Speed Grip Power Collet Chucks
- Turret Number of Sides: 12
- Number of Index Positions: 12
- Z Vertical Slide Travel: 14.00″
- X Horizontal Saddle Travel: 8.00″
- Rapid Travel Speed: 650.00″ min.
- Type: Turret
- Z2 Vertical Slide Travel: 14.00″
- X2 Horizontal Saddle Travel: 8.00″
- Rapid Travel Speed: 600.00″ min.
- Type: Turret
- Power: 3-Phase/60hz/480vac Existing
- Machine Length: 102.00″
- Machine Width: 124.00″
- Machine Height: 126.00″
- Weight: 22,000lbs.
- Additional: 2 arm overhead gantry robot transfer systems; linear scales for x and z axis; air gauge flex gauge in-line computerized gauging station; Mayfran coolant pumpback system with 16″ 2.2 kw single horizontal chip shredder; GE Fanuc series 90-30 PLC control; air conditioner for electrical cabinet
